Sweeper RD-F3

F3 is suitable for indoors and outdoors areas for 30,000㎡ to 50,000㎡. Large filter which is about 9.3㎡. It is a professional ride on weeper that has ceiling which is suitable for both inside and outside places.

Inquiry Now
Sweeping paths1400mmMax working speed6Km/h
Productivity8400m2 /hMax driving speed8Km/h
Main brush’s length700mmMax climbing capacity25°
Power supply
48VFilter surface9.3 Square meter
Continuous working time4-6hNet weight570kg
Dustbin capacity150Lmaintenance-free batterySealed Lead-Acid Battery
Side brush’s diameter500mmBatterycellnike 3-EV-200 4 batteries
Driving power1500WWire(CIS)
Work power600w+500w+60w+ 80w*2ChassisIron
Turning radius(spot turn)2030mmPacking size2.3m*1.5m*1.8m
Dimensions(L/W/H)1700/1400/1920mmAfter packaging weight670kg

Product features


1. Two side brushes, sweeping width of 1350mm, high working efficency

2. Large power for suction system guarantees the suction performance.

3. The use of advanced high-performance maintenance-free batteries, no leakage, do not produce harmful gases.

4. Has international advanced clean-rejection technology, dust box rate up to 100% of the theoretical Value.

5. The reliable good quality parts help to reduce maintenance and repair costs.

6. Solid tire, strong and durable.

7. Imported electronic control device, current protection device, low-voltage protection device, enforced pallet, bigger in size of trash bin.

8. high pressure water spray system can cut down the dust flying.

S2A:Economical & User-friendly

Area coverage up to 8100㎡ cleaned per hour

Optional Choice: Water Tank,Ceiling

It is small and maneuverable allowing the machine to fit easily through most doorways, aisles and congested spaces.

Detail information and adxantages

The shell is made of ABS material, which has high strength,aging resistance, corrosion resistance, anti fouling ability, easy to clean stains.

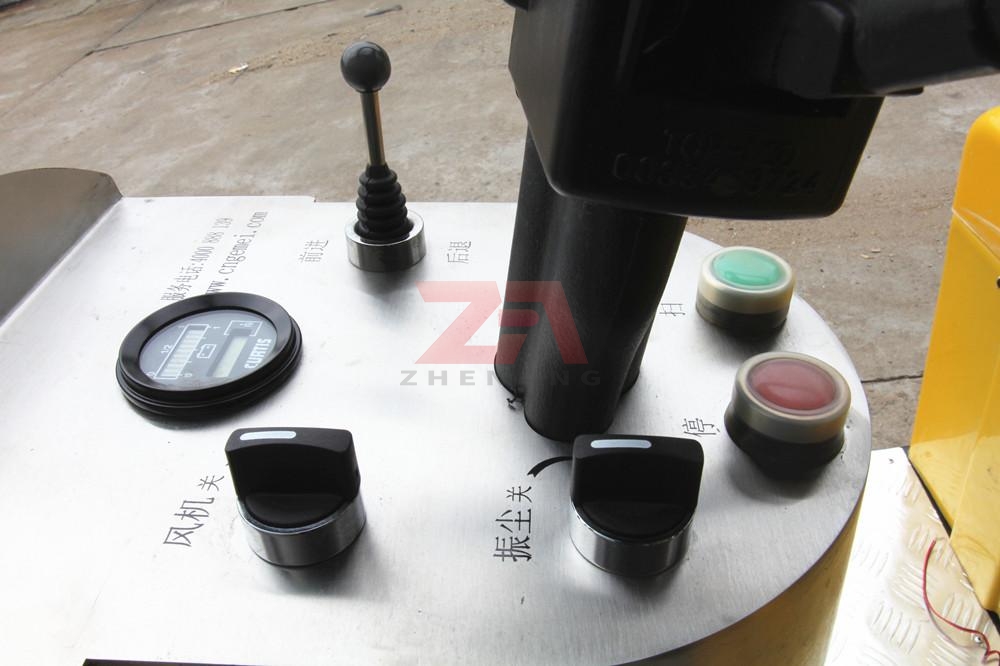

Table 304 stainless steel panel, fresh. The United States Curtis power meter, low power consumption watchband protection is an important protection configuration for battery life. Schneider button, to reach the IP65 level, silver contact, longer service life.

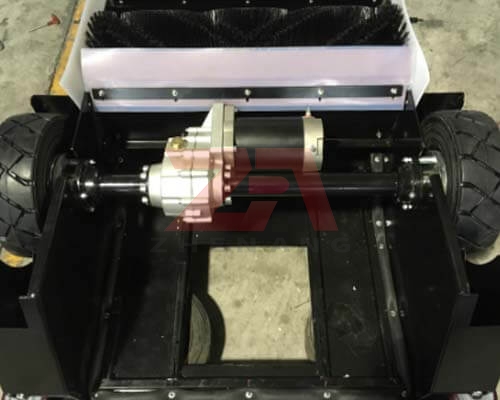

Driving power of 2.0 kilowatts, more able to adapt to the use of municipal sanitation high load environment.

The filter core area of 9.5 square meters, the greater the filtration area, the more time to absorb the dust within the unit time, cleaning dust smaller, effectively prevent dust pollution of the two.

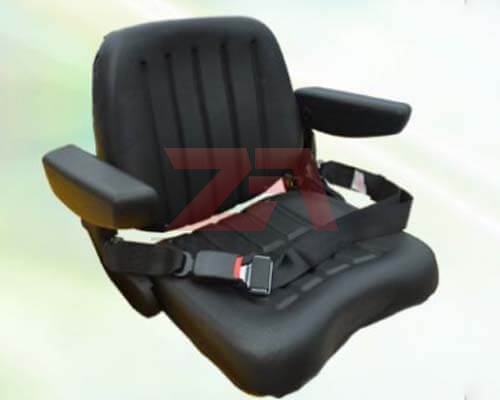

Seat with armrests and safety seats to increase operator comfort and safety.
