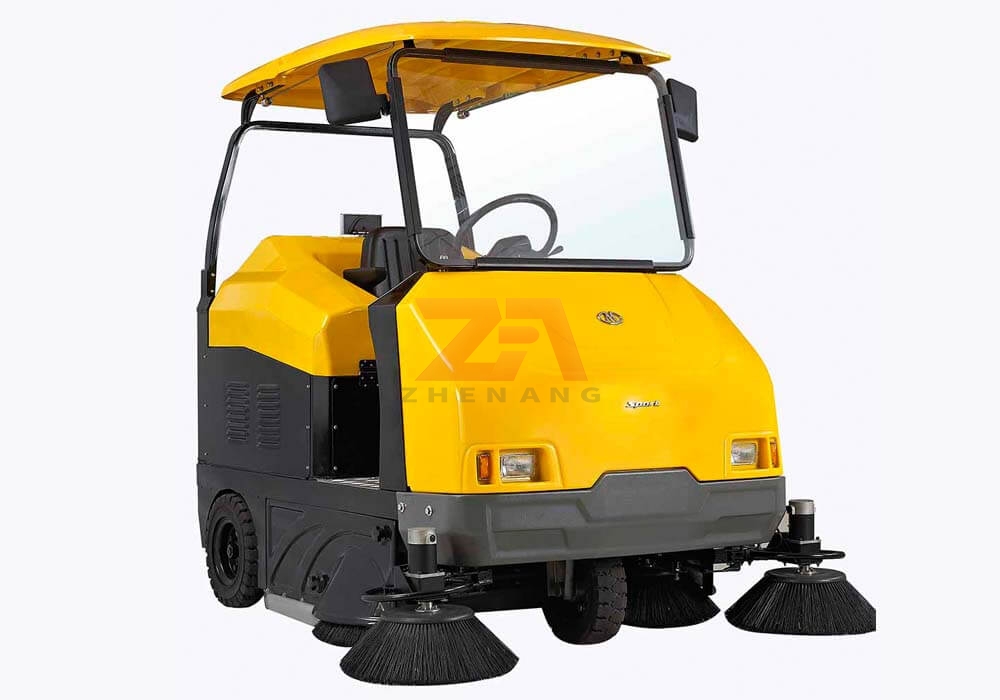

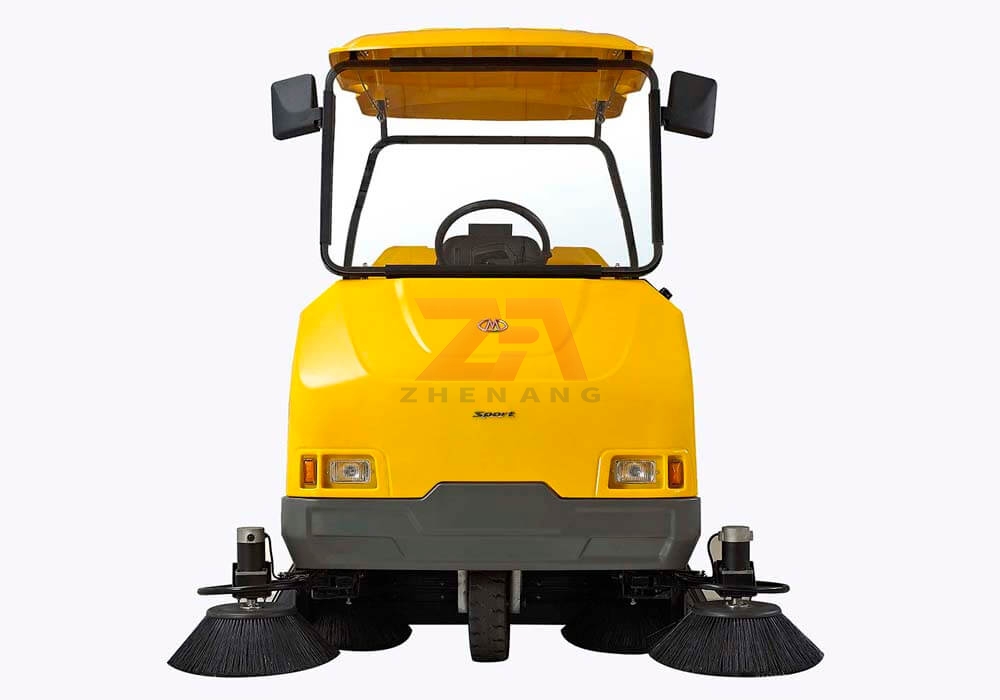

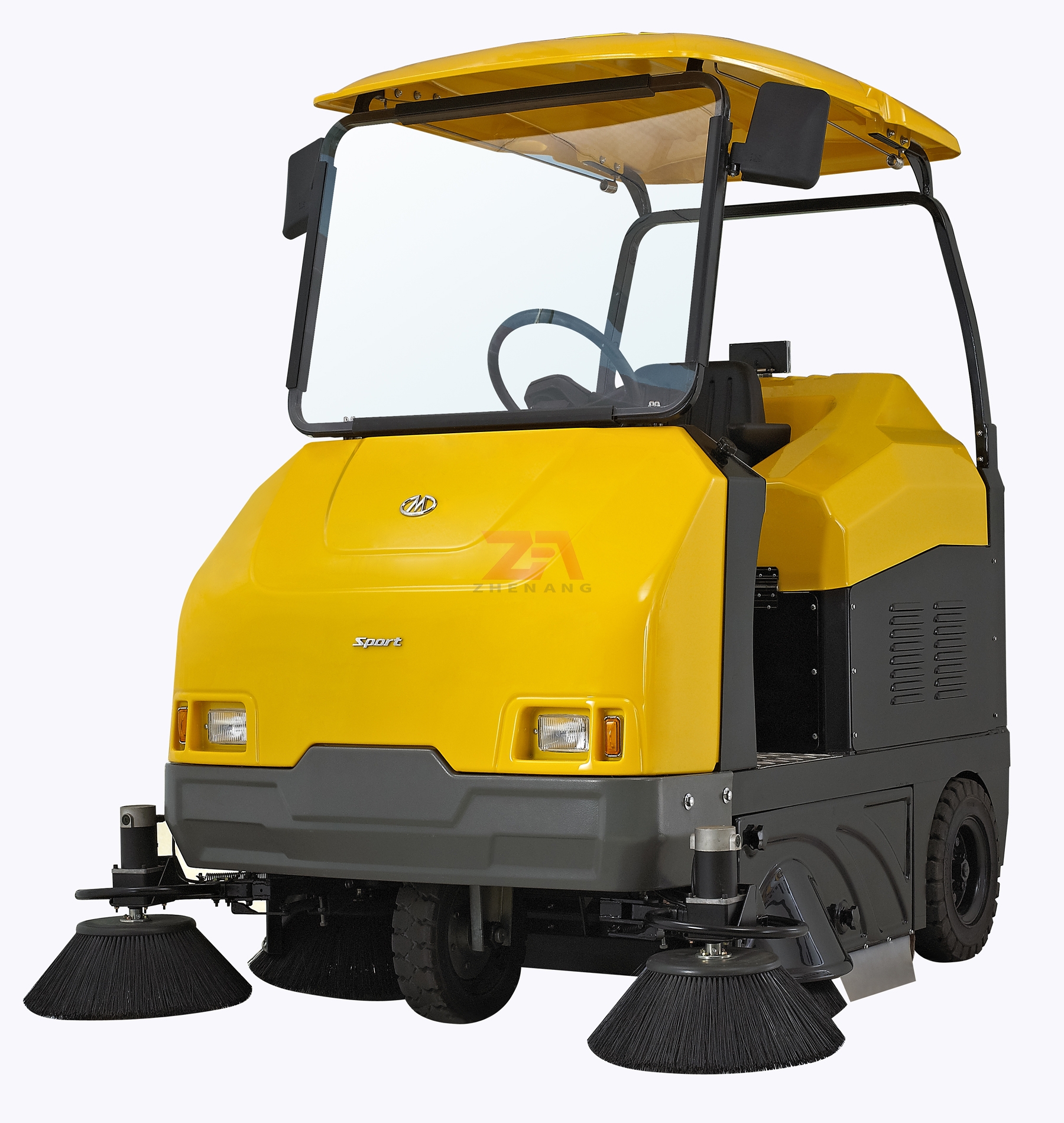

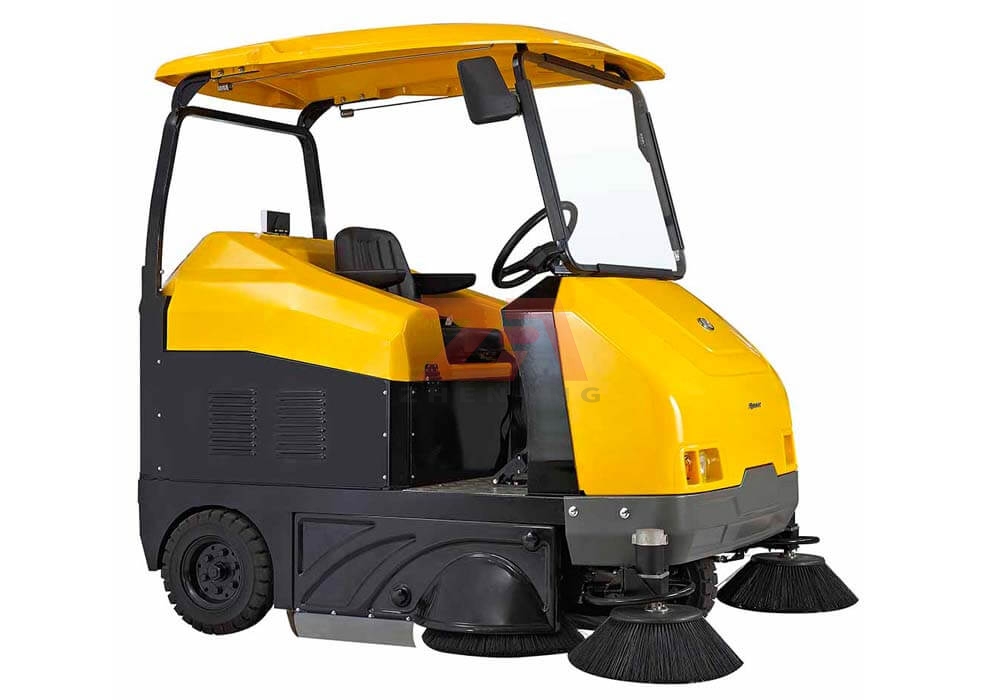

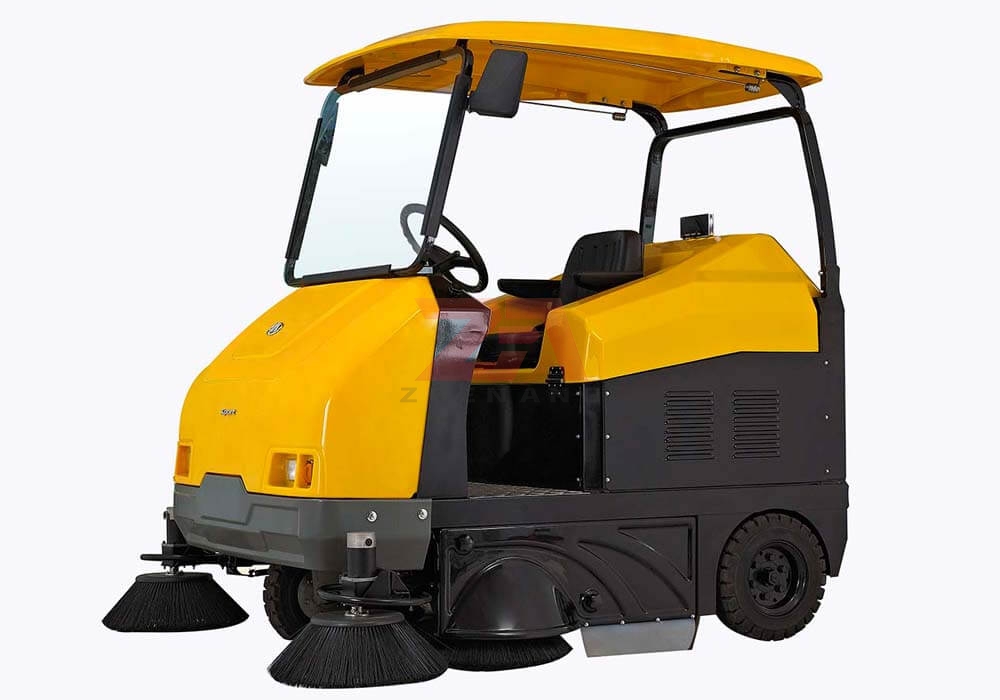

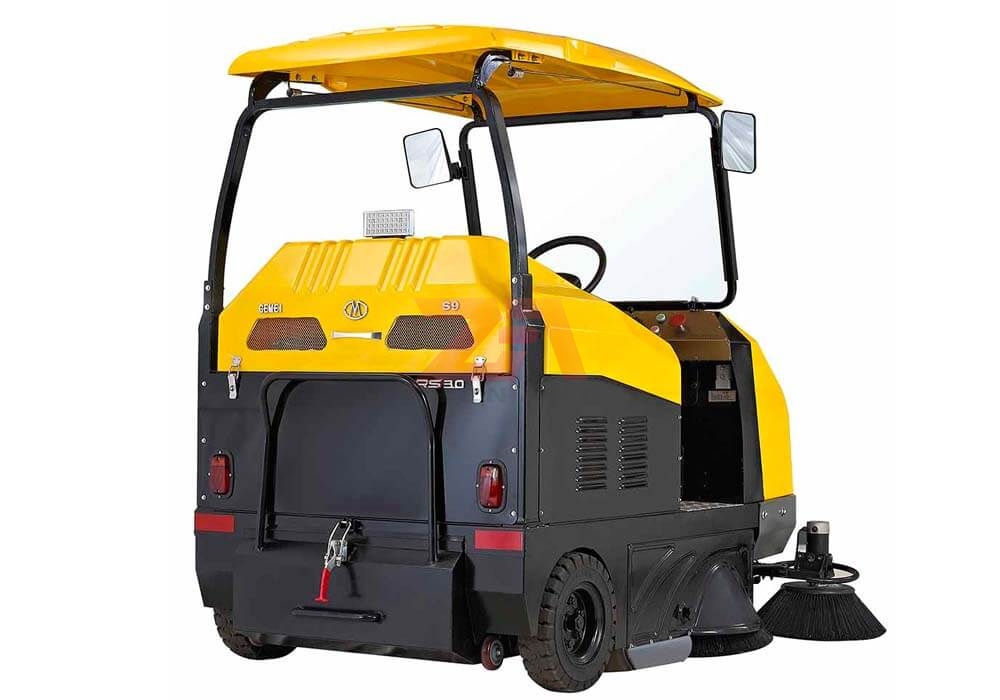

Road Sweeper RD-S9

Gemei聽electric sweeper S9, cleaning width 1.9 meters. It has USA imported CURTIS controller and USA KDS motor. USA KDS motor can support S9 climb up to 25% hill. When go down slope, the CURTIS controller can control the speed and avoid go too fast. The distance between the mainbody and the ground floor help S9 to clean bigger rubbish such as Mineral water bottles. The trash capacity is 180 litter. S9 ride on sweeper is suitable for outdoor places which is more than 20,000 spare meters, such as park, street, Airport, packing lots, City Center,scenic spot and so on.

Inquiry Now
Sweeping paths1900mmMax working speed6Km/h
Productivity11400銕 /hMax driving speed12Km/h
Main brush鈥檚 length800mmMax climbing capacity12掳/25%
Power supply
48VFilter surface9.5銕
Continuous working time6-8hNet weight1000kgs
Dustbin capacity180LControllecurtis 1226R锛宮ade in china
Side brush鈥檚 diameter500mmBatterycellnike 3-EV-200
Driving power3000WWire(CIS)
Work power600w+500w+60w+ 80w*4ChassisIron
Turning radius(spot turn)2450mmPacking size2.3m*1.5m*1.8m
Dimensions(L/W/H)2000/1900/1950mmAfter packaging weight1100kgs

Product features


1. Four side brushes, sweeping width of 1900mm, high working efficiency.

2. Large power for suction system guarantees the suction performance.

3. The use of advanced high-performance maintenance-free batteries, no leakage, do not produce harmful gases.

4. Has international advanced clean-rejection technology, dust box rate up to 100% of the theoretical Value.

5. The reliable good quality parts help to reduce maintenance and repair costs.

6. Solid tire, strong and durable.

7. Imported electronic control device, current protection device, low-voltage protection device, enforced pallet, bigger in size of trash bin.

8. high pressure water spray system can cut down the dust flying.

S9锛 For Municipal, Residential Area Cleaning

Area coverage up to 11,400 銕 cleaned per hour

S9 sweeper's body is 10cm from the ground, which is helpful for cleaning the place with speed bump and the unflat road.

S9 can clean a series of garbage including leaves, mineral water bottles, cans, and sand, etc.

Detail information and adxantages

The shell is made of ABS material, which has high strength,aging resistance, corrosion resistance, anti fouling ability, easy to clean stains.

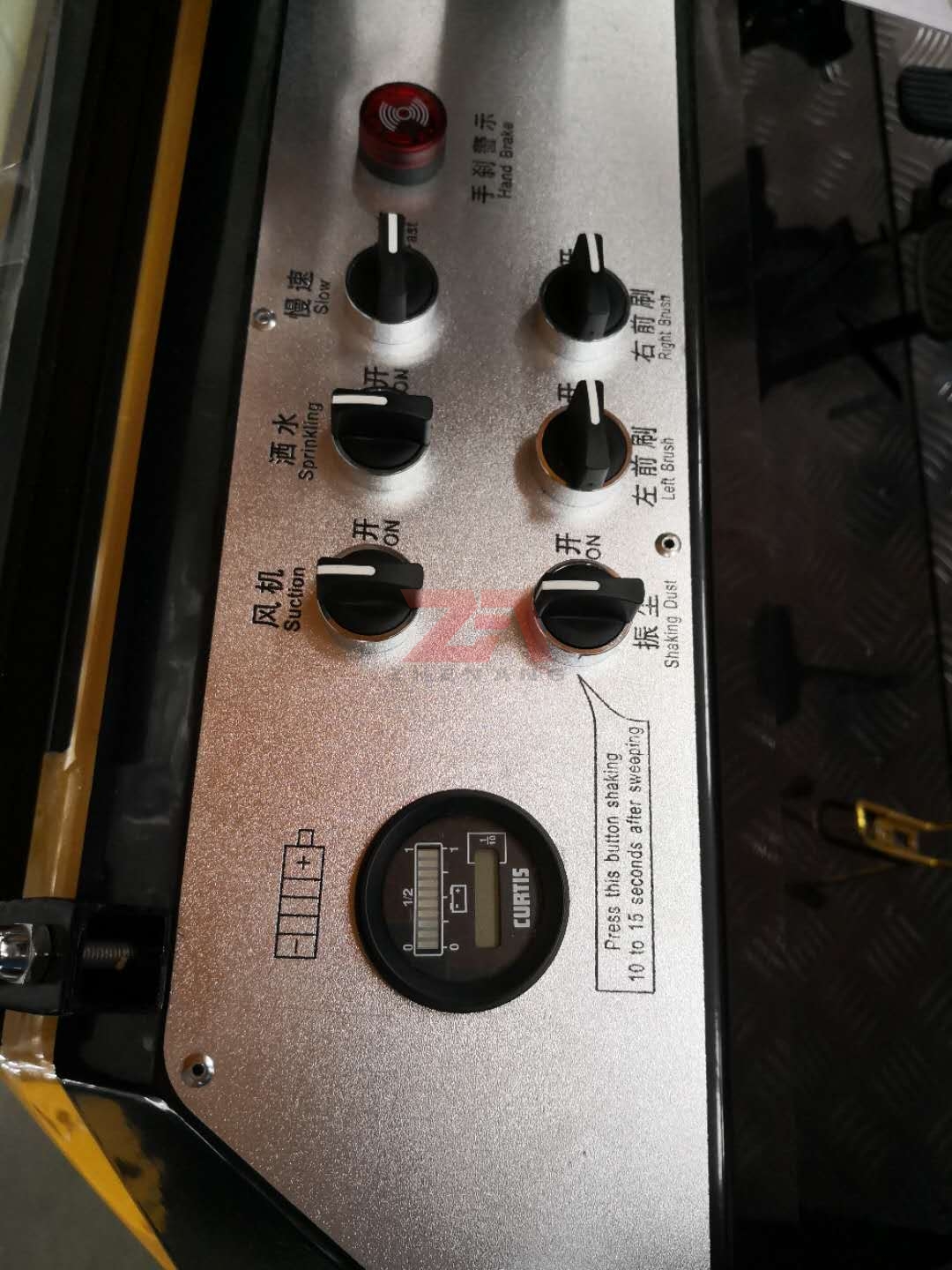

Table 304 stainless steel panel, fresh. The United States Curtis power meter, low power consumption watchband protection is an important protection configuration for battery life. Schneider button, to reach the IP65 level, silver contact, longer service life.

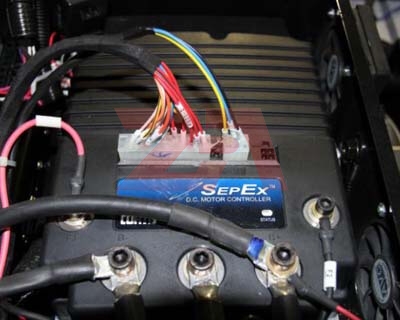

The use of American brand Curtis big power controller, with brake current recharge function, prolong the mileage, and electronic brake function, descent function, operation more safety.

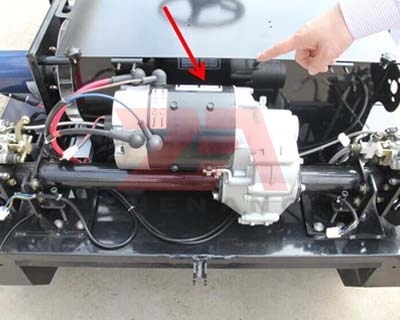

Driving power of 3 kilowatts, more able to adapt to the use of municipal sanitation high load environment.

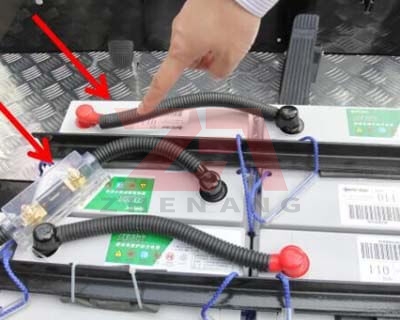

The battery line adopts 25 square GB flame retardant line, with overload protection device, and the battery pack to strengthen the floor, to reduce the impact and shock on the battery, the battery is connected with a protective paste.

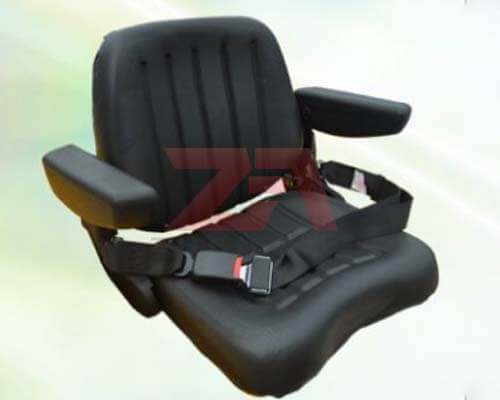

Seat with armrests and safety seats to increase operator comfort and safety.

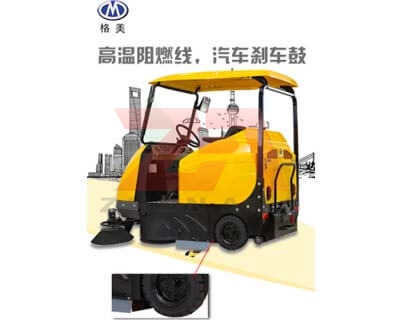

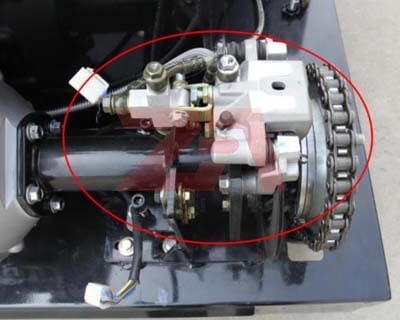

The brake device adopts special brake car, the braking distance is shorter, less labor, higher security.

Integrated wiring harness, to achieve automotive TS16949 standards, wire to German standards, the use of flame-retardant wire.

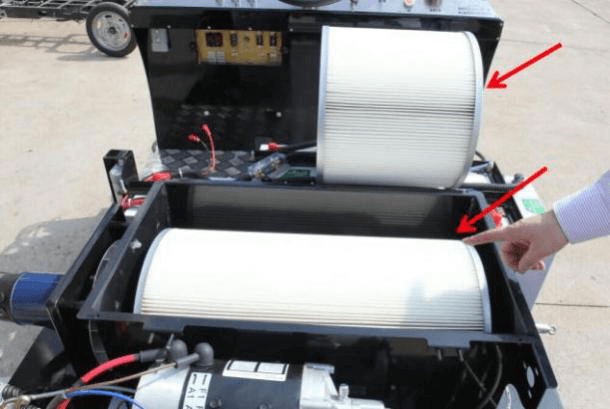

The filter core area of 9.5 square meters, the greater the filtration area, the more time to absorb the dust within the unit time, cleaning dust smaller, effectively prevent dust pollution of the two.

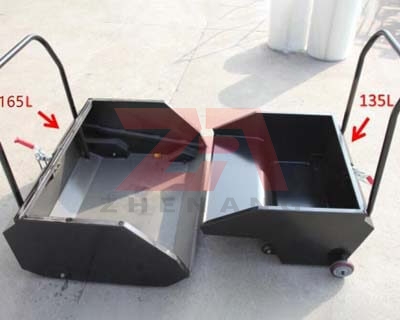

The garbage box is designed for the large capacity of 165L, which increases the load capacity of the garbage bin, reduces the number of dumping, and improves the working efficiency.

Our sweeper for municipal road design, from the 8CM, more easily through the buffer zone and the uneven pavement, road teeth, ensure the sweeping effect.

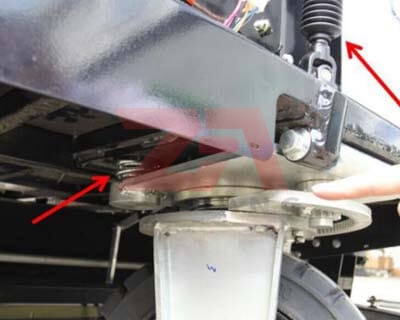

The front wheel multistage adjustable shock absorber, reducing driving vibration, reducing operator fatigue and also reduce the road facing body structure impact, increase the life of the vehicle.

All sweeping car products can be purchased third insurance, so that customers in the course of driving no worries.
