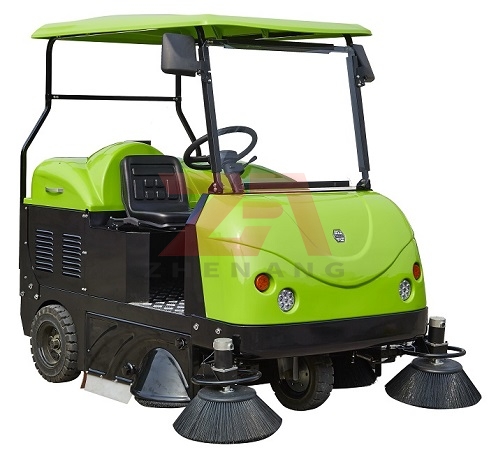

Sweeper RD-T9

Suitable for outdoors areas large than 20,000 m虏. It is good at cold place and effective everywhere - on paths and pavements, outdoor and indoor parking areas etc. For professional continuous use on large cars parks, exhibition grounds and industrial areas. T9 can clean from metal debris, ceramic powder, coal cinder to various industrial garbage

Inquiry Now
Specification
Sweeping paths 1900mm Max working speed 6Km/h
Productivity 11400m2 /hr Max driving speed 10Km/h
Main brush鈥檚 length 800mm Max climbing capacity 25掳
Power supply
48VFilter surface9.5 Square meter
Continuous working time 6-8h Net weight 1000kgs
Dustbin capacity 180L maintenance-free battery Sealed Lead-Acid Battery
Side brush鈥檚 diameter 500mm Battery cellnike 3-EV-200
Driving power 3000W Wire (CIS)
Work power 600w+500w+60w+ 80w*4 Chassis Iron
Turning radius(spot turn) 2550mm Packing size 2.3m*1.5m*1.8m
Dimensions(L/W/H) 2000/1900/1950mm After packaging weight1100kgs

Product features


T9 CHARACTERISTICS

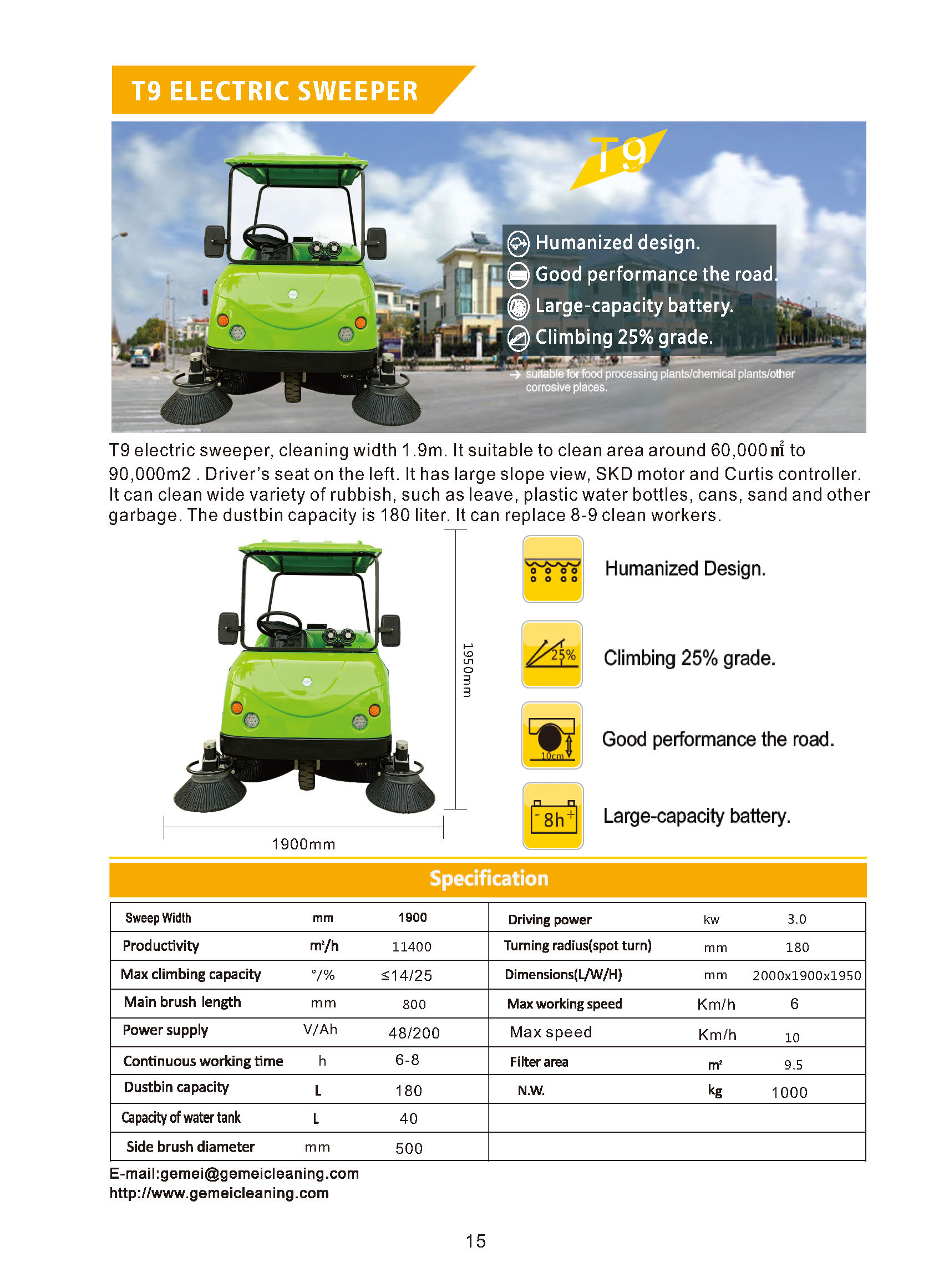

T9 electric sweeper, cleaning width 1.9m. It suitalbe to clean area around 60,000銕 to 90,000銕 . Driver鈥檚 seat on the left. It has large slope view, SKD motor and Curtis controller.It can clean wide variety of rubbishes, such as leave, plastic water bottles, cans, sand and other garbage. The dustbin capacity is 180 litre. It can replace 8-9 clean workers.



Width: 1900mm


Main Brush: 800*350mm


Voltage: 48v (8 batteries)


Working Productivity:11400-15200m2/h


Working Speed: 6 km/h


Working Time: 6-8 hours


Charging time: 10-12 hours


Detail information and adxantages


Gemei
The shell is made of ABS material, which has high strength,aging resistance, corrosion resistance, anti fouling ability, easy to clean stains.


Gemei

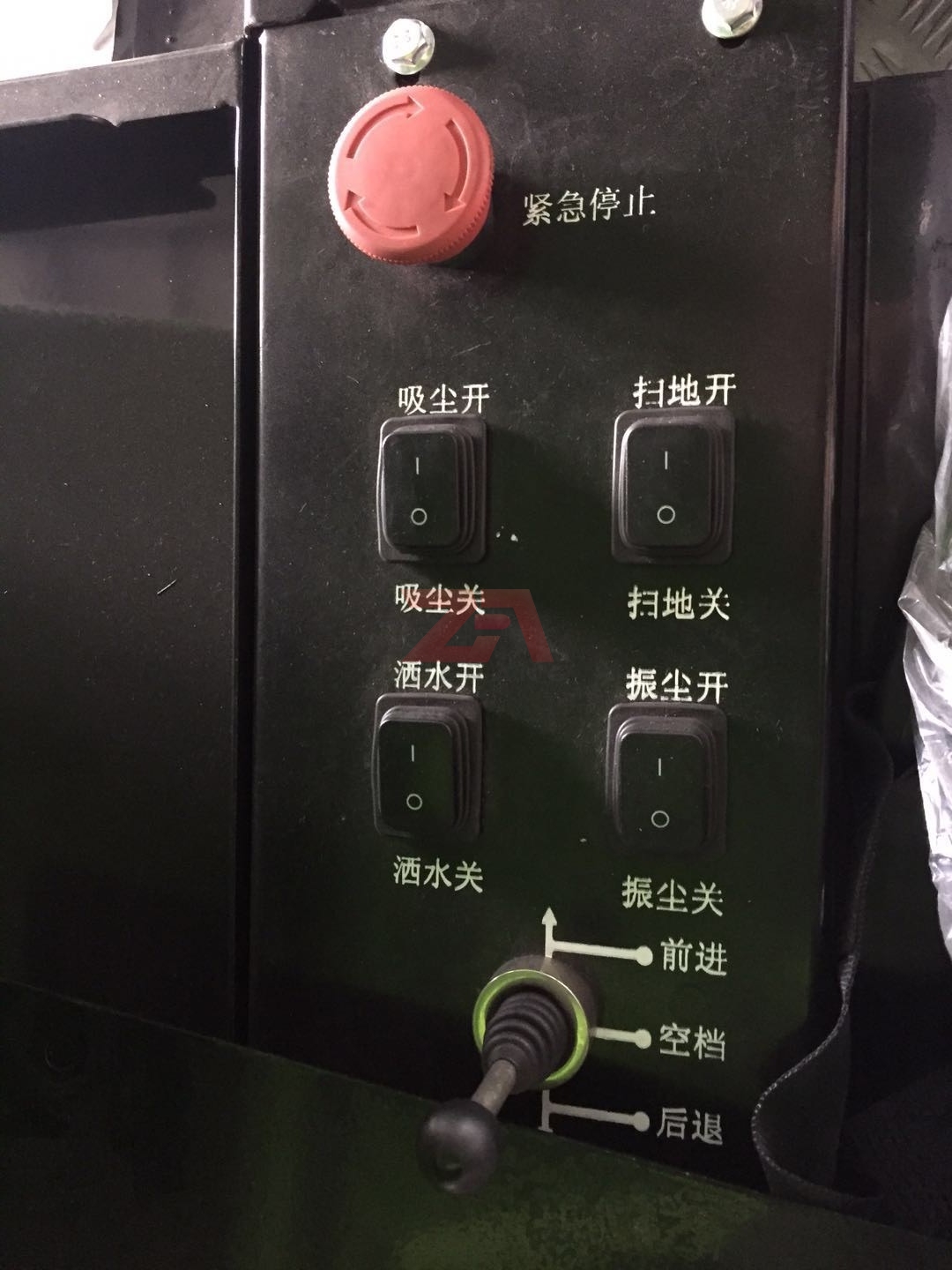

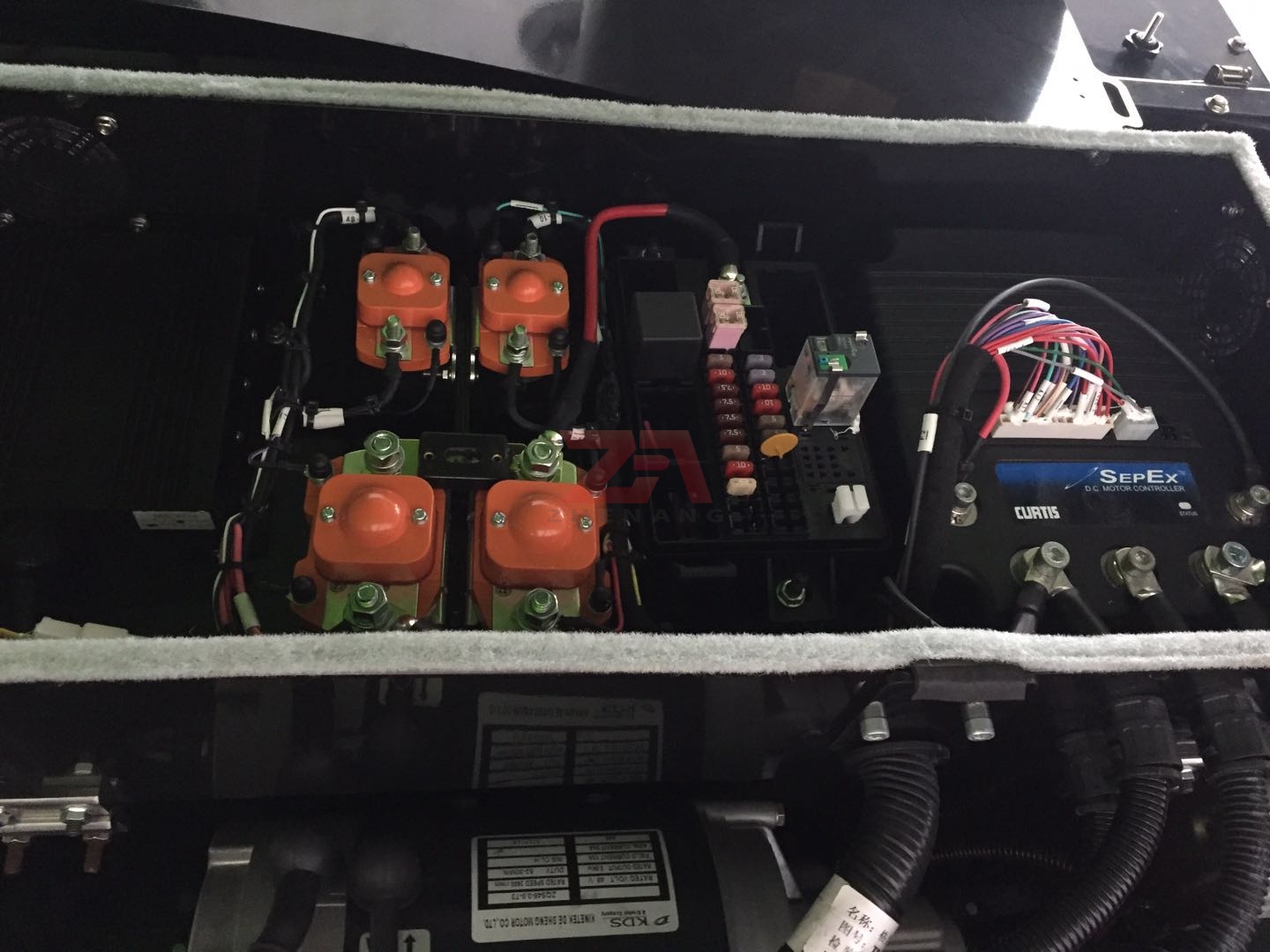

Table 304 stainless steel panel, fresh. The United States Curtis power meter, low power consumption watchband protection is an important protection configuration for battery life. Schneider button, to reach the IP65 level, silver contact, longer service life.


Gemei

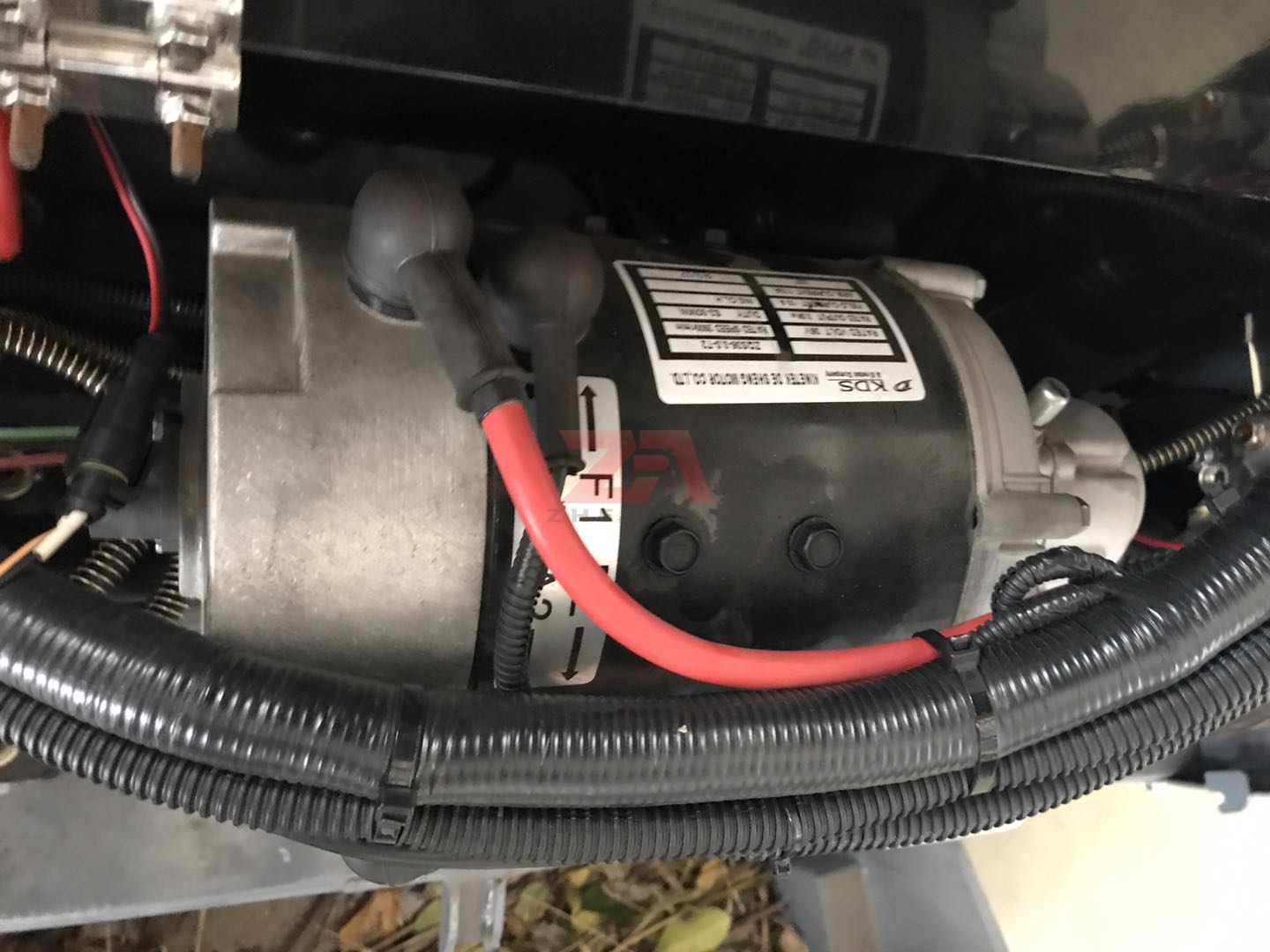

Driving power of 3 kilowatts, more able to adapt to the use of municipal sanitation high load environment.


Gemei
The shell is made of ABS material, which has high strength,aging resistance, corrosion resistance, anti fouling ability, easy to clean stainsThe battery line adopts 25 square GB flame retardant line, with overload protection device, and the battery pack to strengthen the floor, to reduce the impact and shock on the battery, the battery is connected with a protective paste..


Gemei

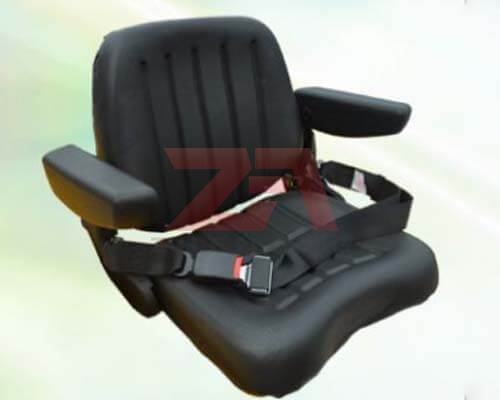

Seat with armrests and safety seats to increase operator comfort and safety.


Gemei

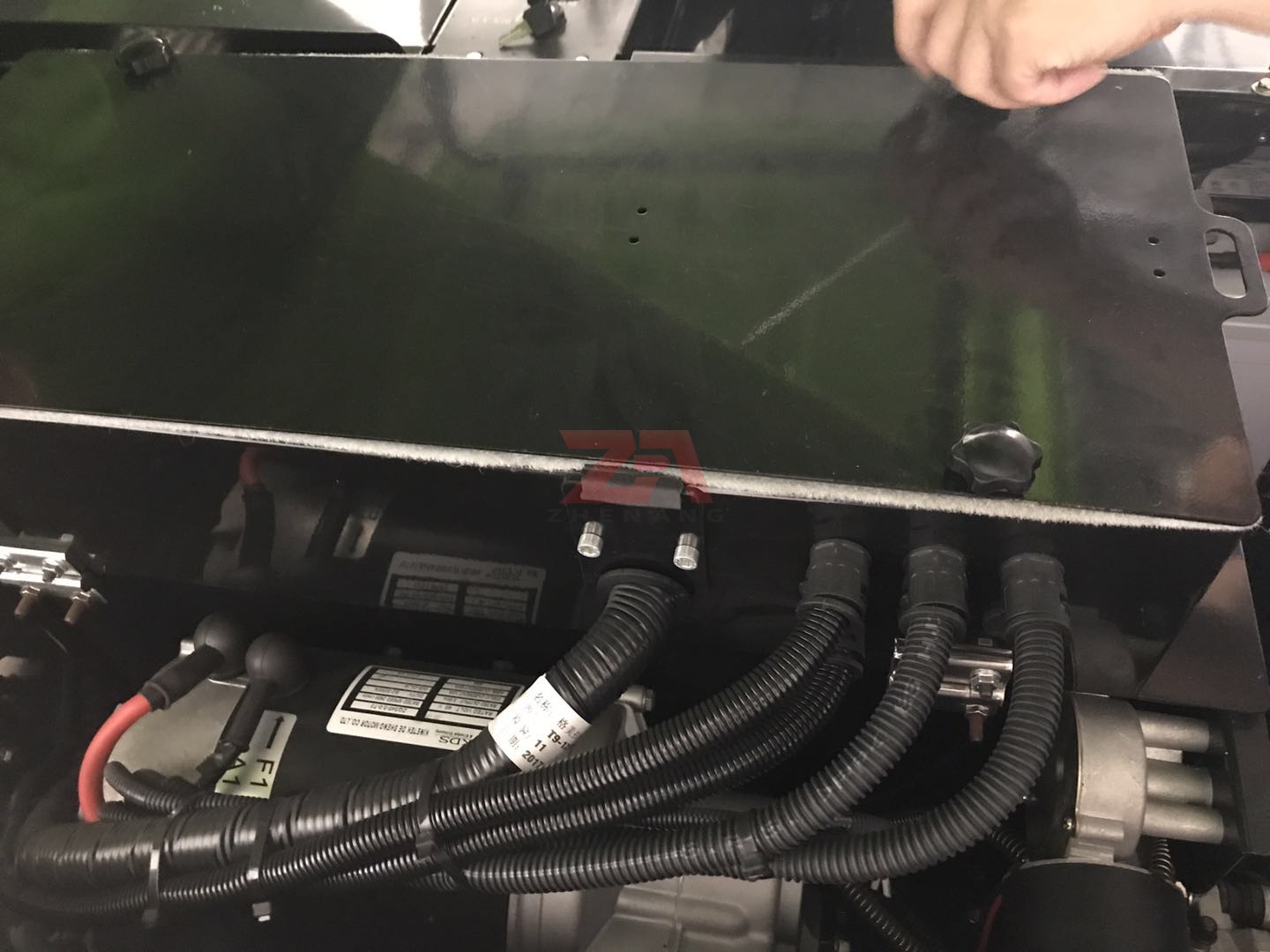

Integrated wiring harness, to achieve automotive TS16949 standards, wire to German standards, the use of flame-retardant wire.


Gemei
The filter core area of 4.3 square meters, the greater the filtration area, the more time to absorb the dust within the unit time, cleaning dust smaller, effectively prevent dust pollution of the two.


Gemei

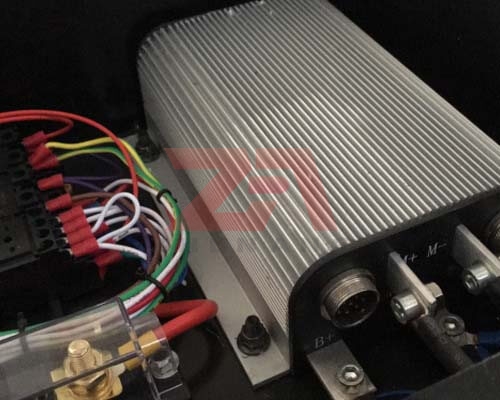

We use good quality big power controller, with brake current recharge function, prolong the mileage, and electronic brake function, descent function, operation more safety.
